NOARK motor contactors are designed to handle the most demanding motor control applications, including full voltage non-reversing (FVNR) reversing (FVR) and wye-delta reduced voltage starting. With ampere ratings from 6A through 1000A, 9ur Ex9C contactor is ideal for any application from HVAC controls, pump control panels and customized control panels for automation systems.
The Ex9C series of motor contactors consists of nine frame sizes and a complement of overload relays and accessories, allowing for maximum design flexibility and efficiency for electrical designers and engineers.

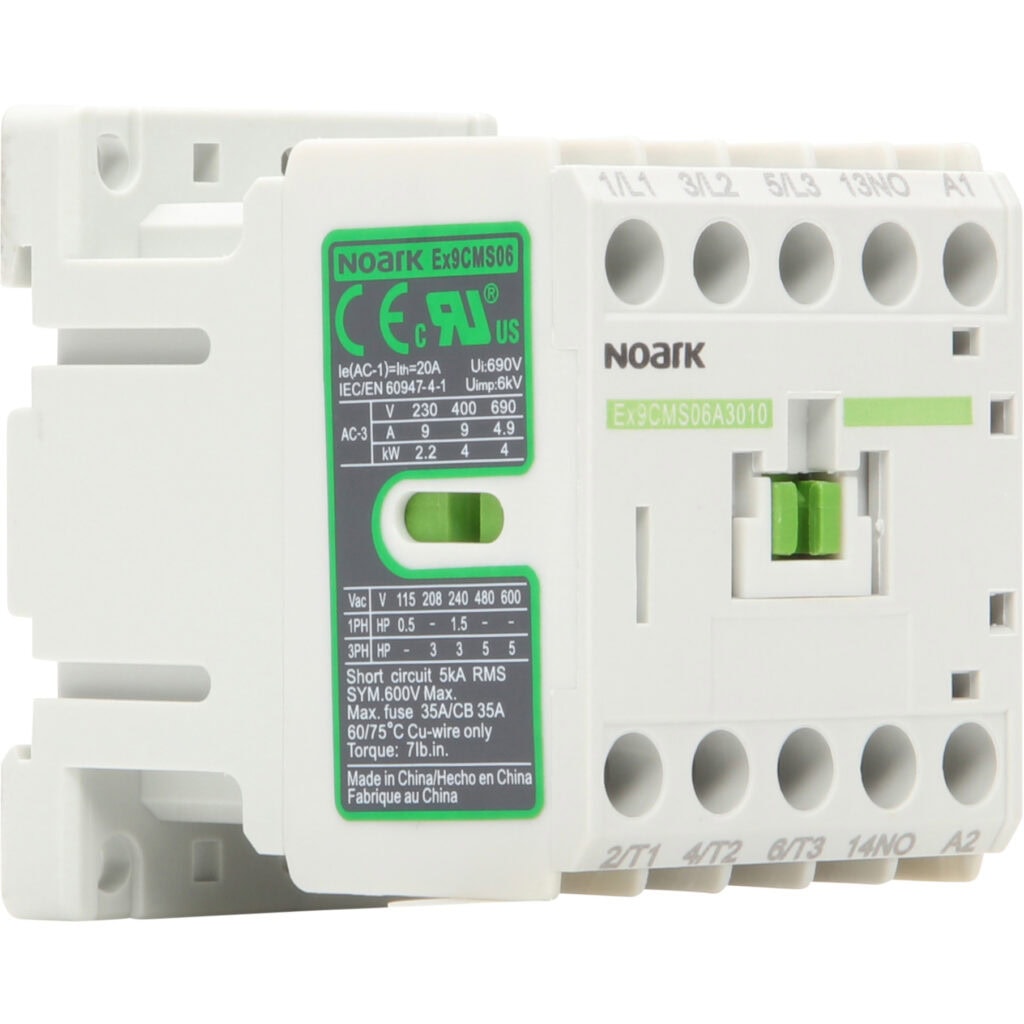

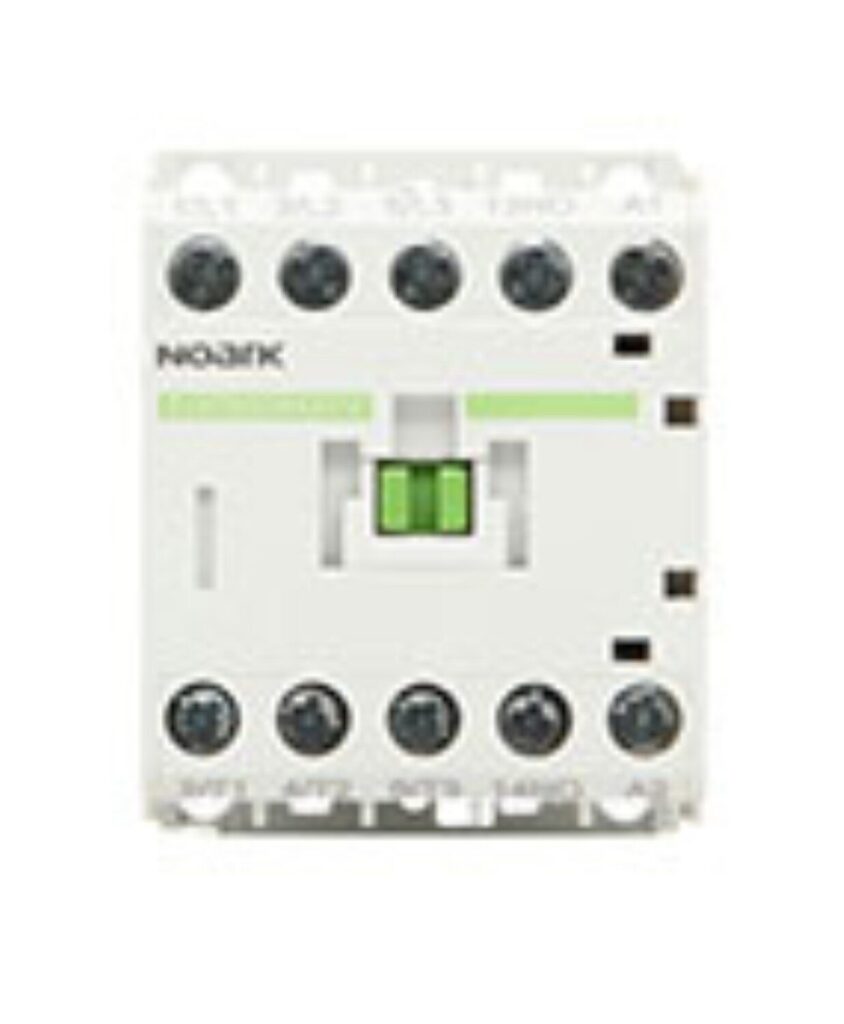

• One frame size rated current from 6~12A at 690V
AC3
• Available as Full Voltage Non-reversing (FVNR)
and Full Voltage Reversing (FVR)
contactors
• Coil control voltage available in ranges from
24~500VAC and 12~250Vdc
• Available in 3 & 4-pole
• Thermal Overload relays settings from 0.16A
through 12A

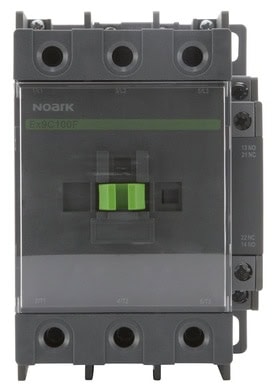

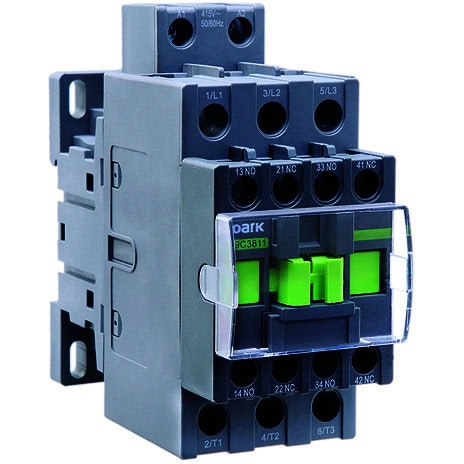

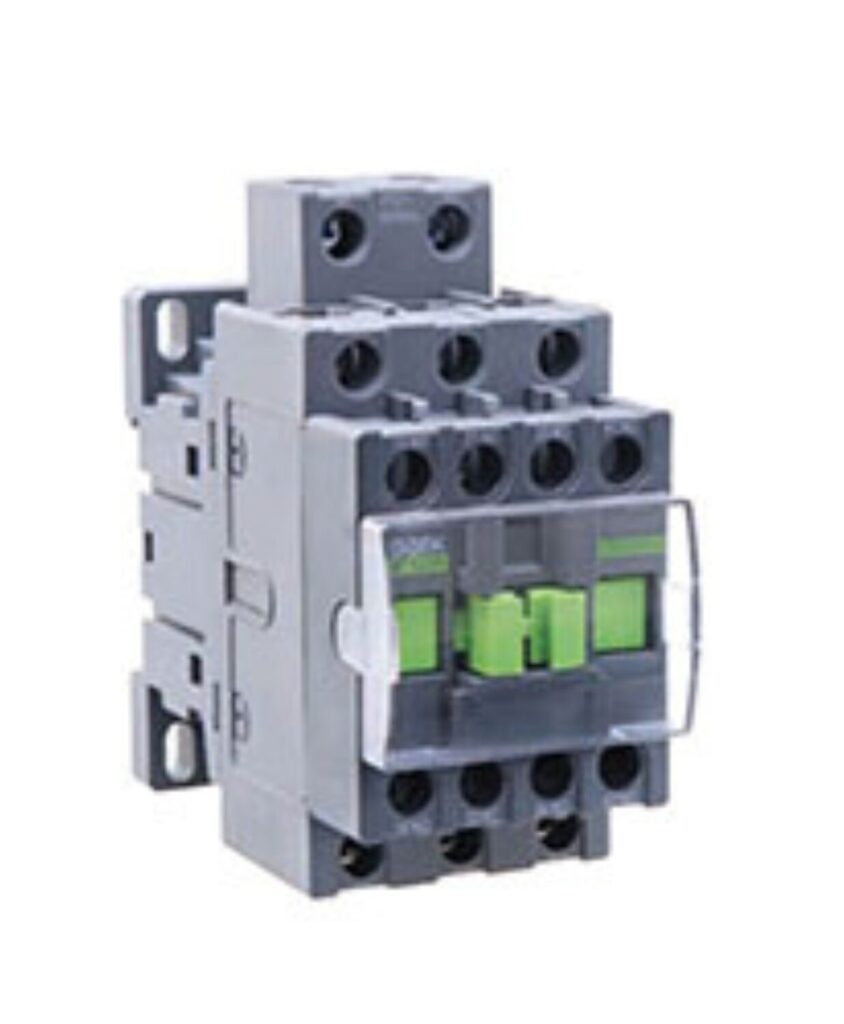

• Nine frame sizes with rated current up to 1000A
at 690V AC3

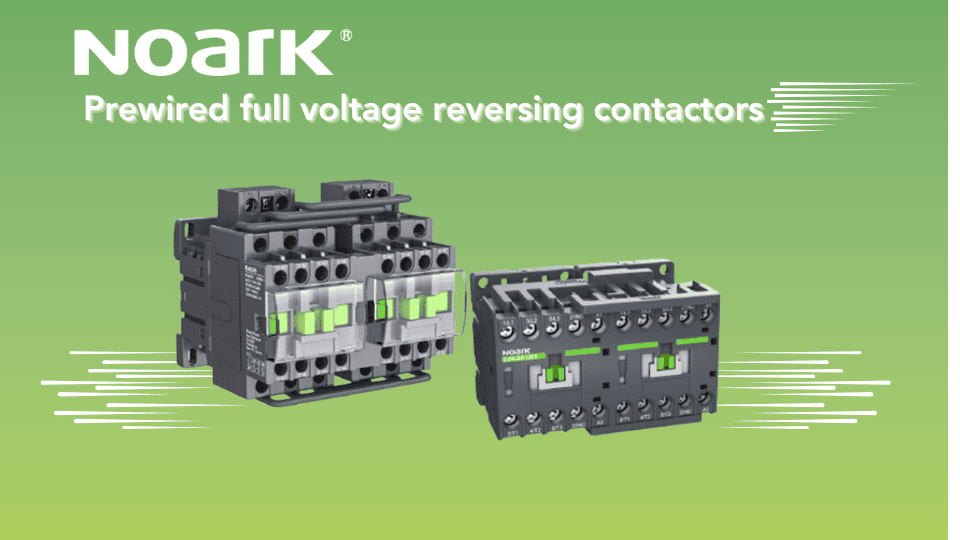

• Available as Full Voltage Non-reversing (FVNR)
and Full Voltage Reversing (FVR)
contactors.
• Coil control voltage available in AC and DC
with ranges from 24-600V
• Wide range electronic coil available for
09~500 A contactors with built-in surge
suppression
• Available in 3-pole
• Thermal Overload relays settings from 0.63A
through 500A
